V020 OBD2 Car Scanner Reader Bluetooth Wireless Auto Diagnostic Scan Tool Vehicle Engine Fault Code Reader For IOS Android PC
A discerning wardrobe consists of timeless basics. Our henley is unmistakably refined, subtle, and features an attractive neckline with a deep five-button placket.
SPECIFICATIONS
Brand Name: NoEnName_Null
Certification: CE,FCC,RoHS
Choice: yes
Color: Black
Feature 1: obd2 scanner / obd2 car scanner
Feature 2: obd 2 diagnostic 2024
Feature 3: obd2 bluetooth
Feature 4: obd2 diagnostic tool
Feature 5: obd car diagnostic
Feature 6: elm327 bluetooth obd2
Feature 7: car diagnostic tool
Feature 8: elm 327 bluetooth
Feature 9: diagnostic scan tool reader
Hign-concerned Chemical: None
Item Type: Code Readers & Scan Tools
Language: English,FRENCH,german,japanese,Russian,Spanish
Origin: Mainland China
Software Update: Yes
Special Features: Bluetooth
Storage Temperature: -20~60 degrees
Suitable for: All Cars After 1996
Support: iOS / Android / PC
Working Temperature: -20~60 degrees
semi_Choice: yes
Description:

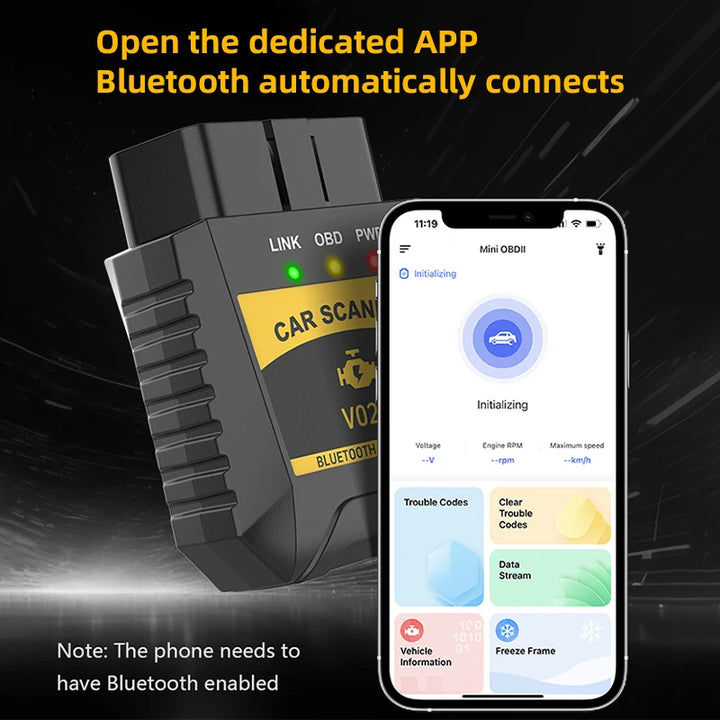

This product is an on-board intelligent vehicle diagnostic instrument based on Bluetooth communication, which can provide vehicle fault diagnosis, vehicle data reading, performance testing and other services for the majority of car owners through the APP client.
Product plug and play without binding to fill in personal information, compatible with all OBDII standard 9 agreement models.

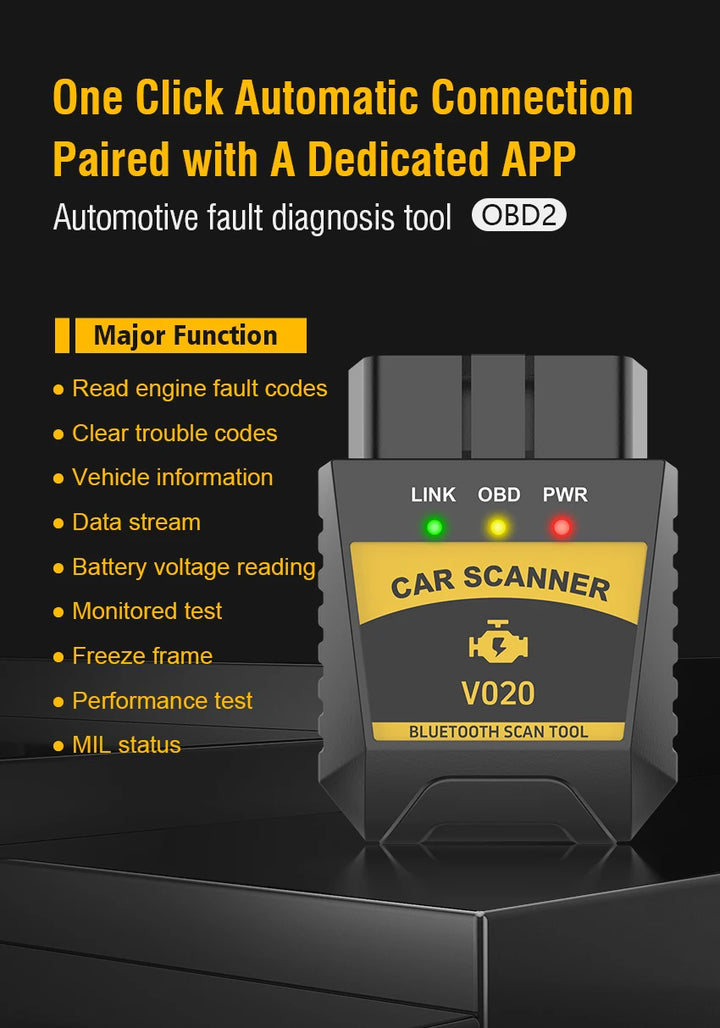

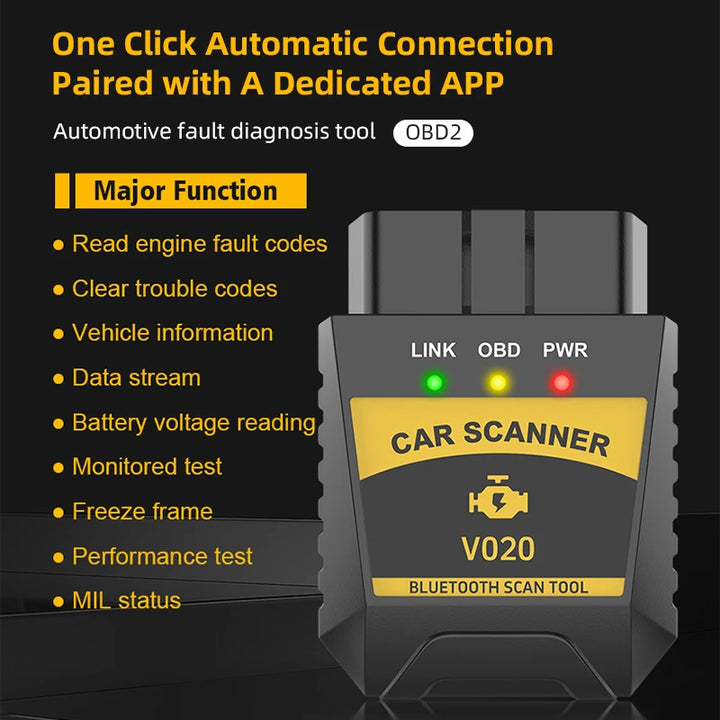

Main Function:

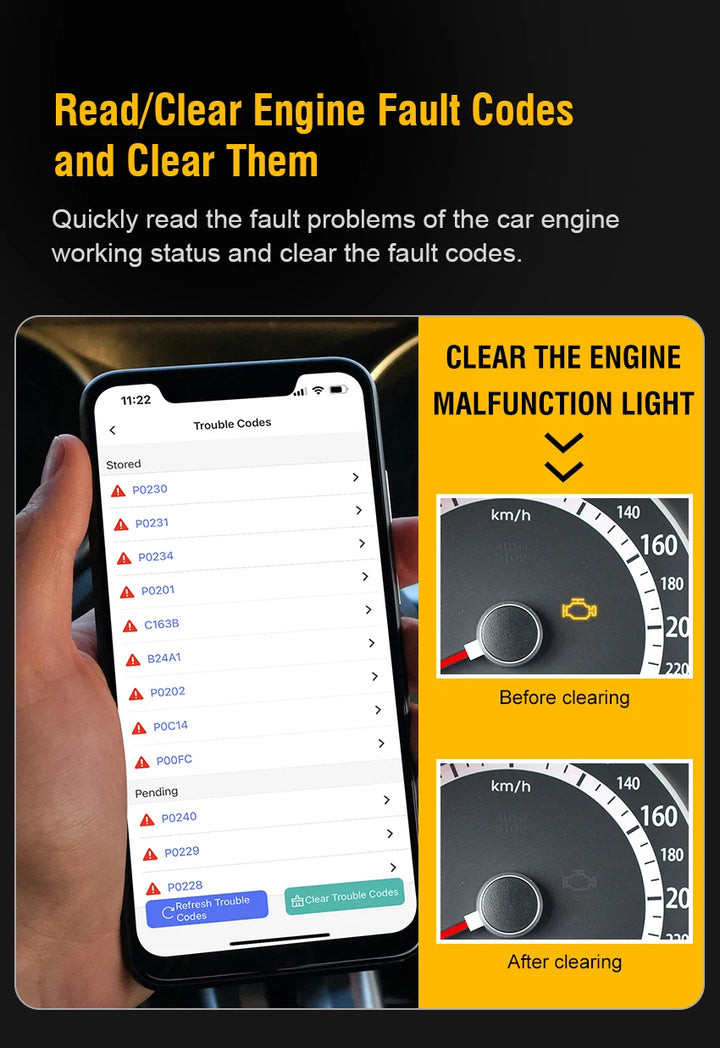

1. Fault code
Read the car's current fault code information

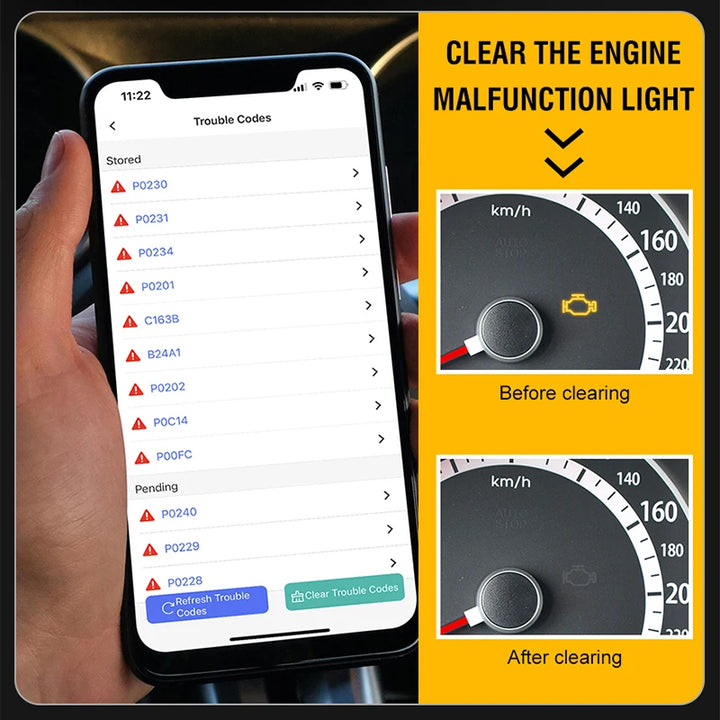

2. Clear the fault code.
After the fault is cleared, the car engine failure light is off. If the light is not off, the engine can be turned off and cleared when the power is on.
3. Vehicle information
Read the car frame number and other information.

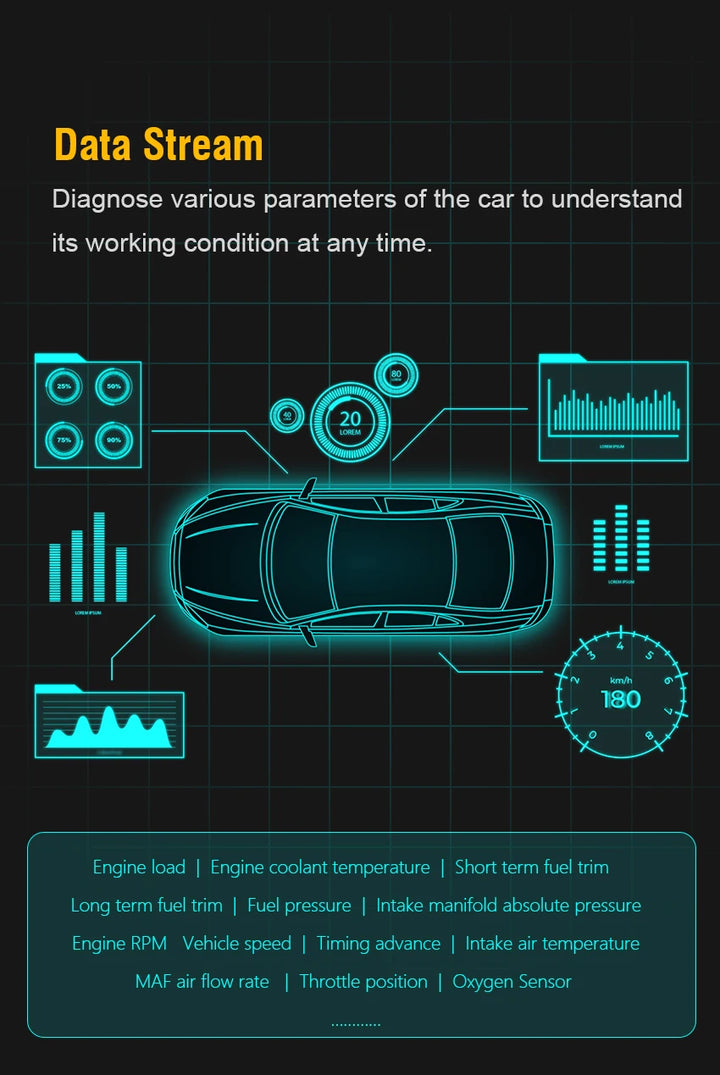

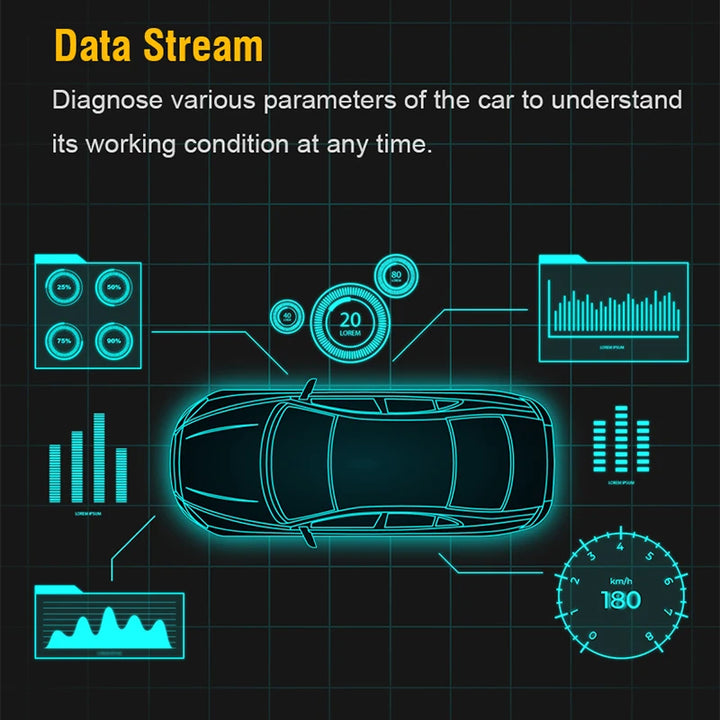

4. Data flow
Read the current real-time data flow information of the car.

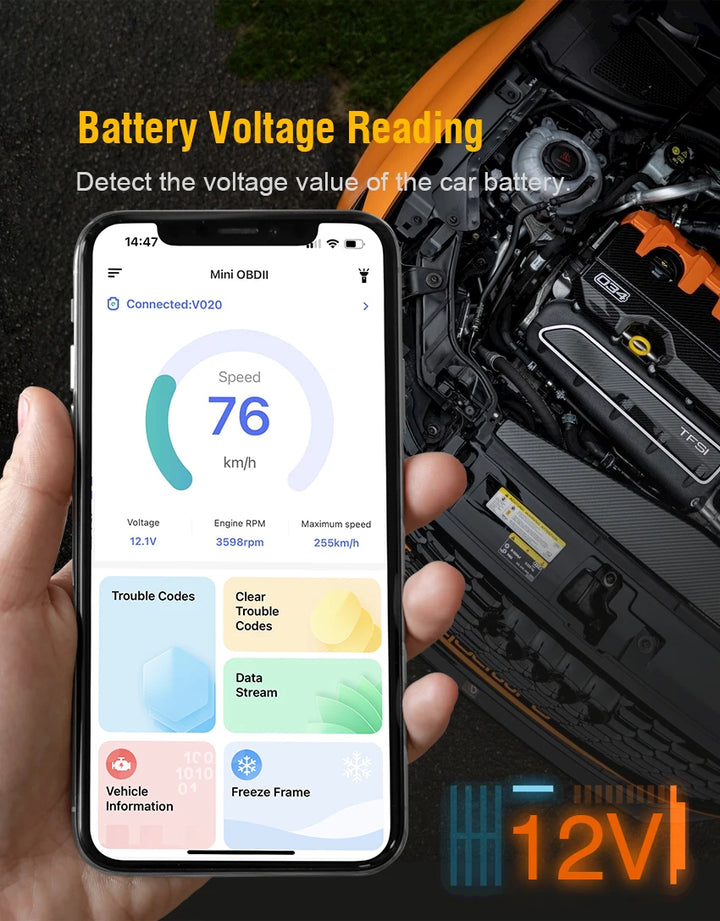

5. Battery voltage reading
Diagnose the working voltage of automotive batteries.

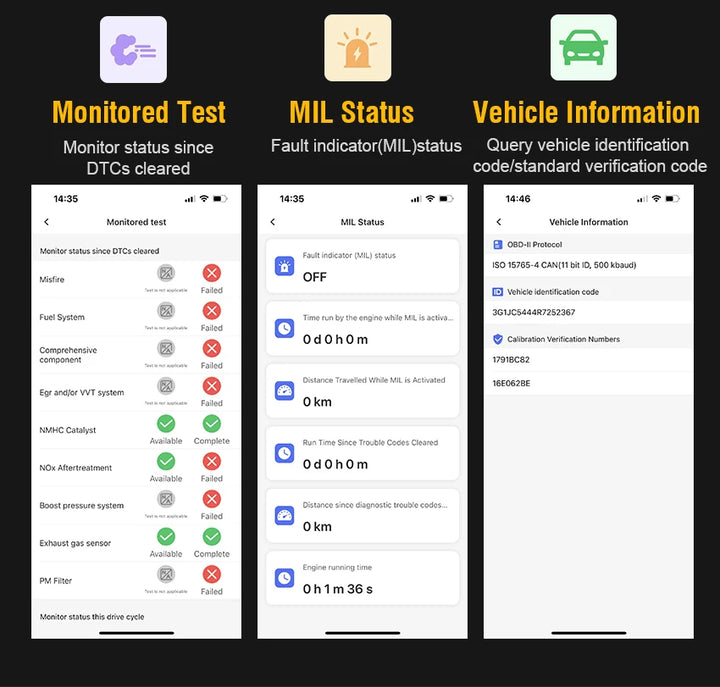

6. Monitor the test
Read the monitoring data after the DTC is cleared.

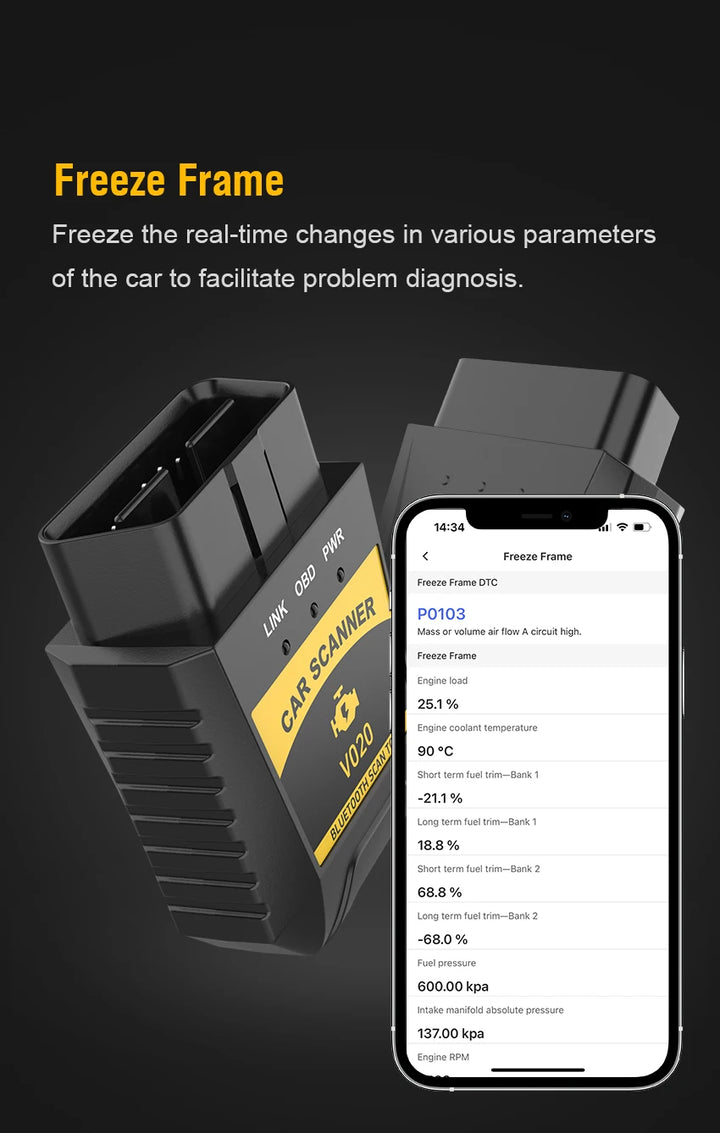

7. Freeze the frame
Frozen data when the car has a fault code

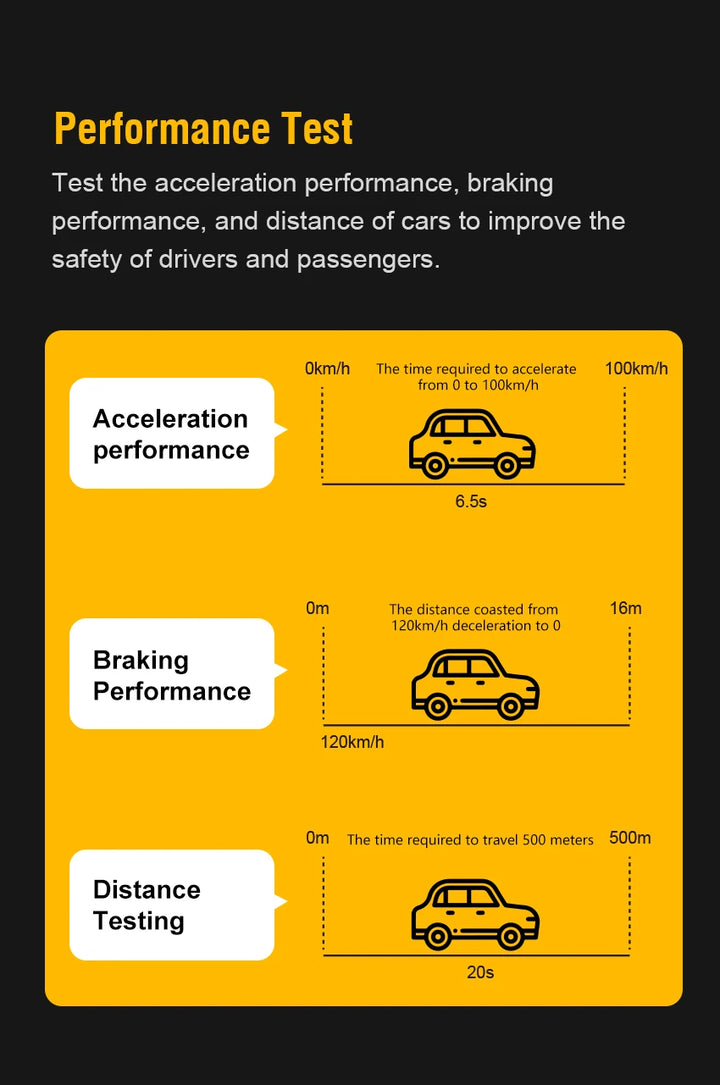

8. Performance test.
Test vehicle acceleration performance, braking performance, distance performance.
9.MIL Status
Diagnostic car MIL fault indicator light related data.
Support Protocols:
SAE J1850 PWM (41.6 kbaud)
SAE J1850 VPW (10.4 kbaud)
ISO9141-2(5 baud init,10.4Kbaud)
ISO14230-4 KWP(5 baud init,10.4 Kbaud)
ISO14230-4 KWP(fast init,10.4 Kbaud)
ISO15765-4 CAN(11bit ID,500 Kbaud)
ISO15765-4 CAN(29bit ID,500 Kbaud)
ISO15765-4 CAN(11bit ID,250 Kbaud)
ISO15765-4 CAN(29bit ID,250 Kbaud)
Also supports CAN protocols and other protocols.

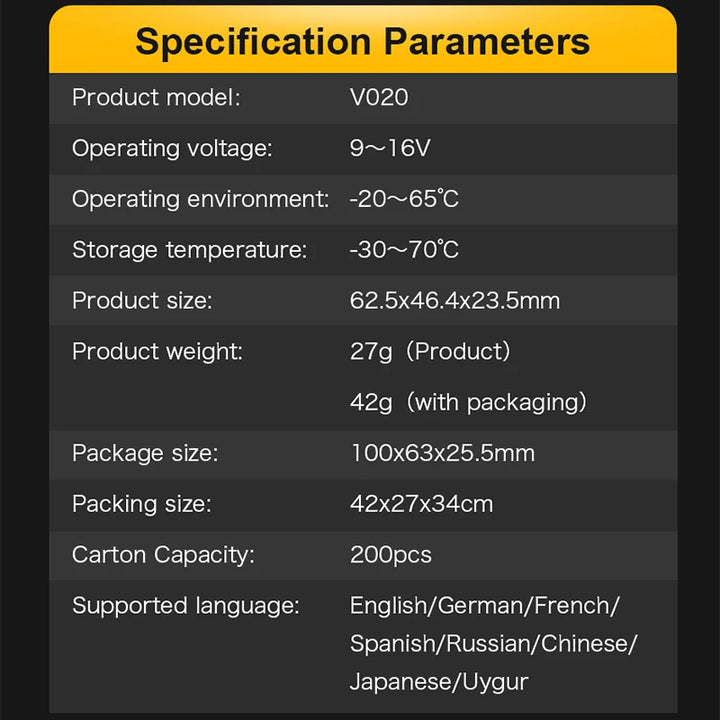

Specification:

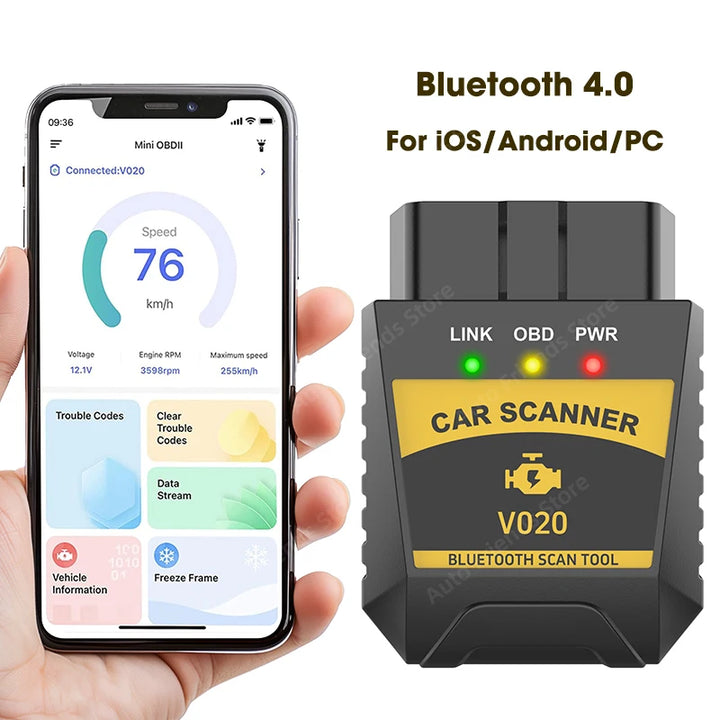

Communication Method: Bluetooth 2.0/Bluetooth 4.0
Main Control Chip: BAT32G137GH48FA, LQFP48
Working Voltage: DC 9V~16V
Working Current: 28mA~42mA
Standby Current: 25mA
Operating Temperature: -20~60 ℃
Storage Temperature: -20~60 ℃
Supported Systems: iOS, Android, Windows

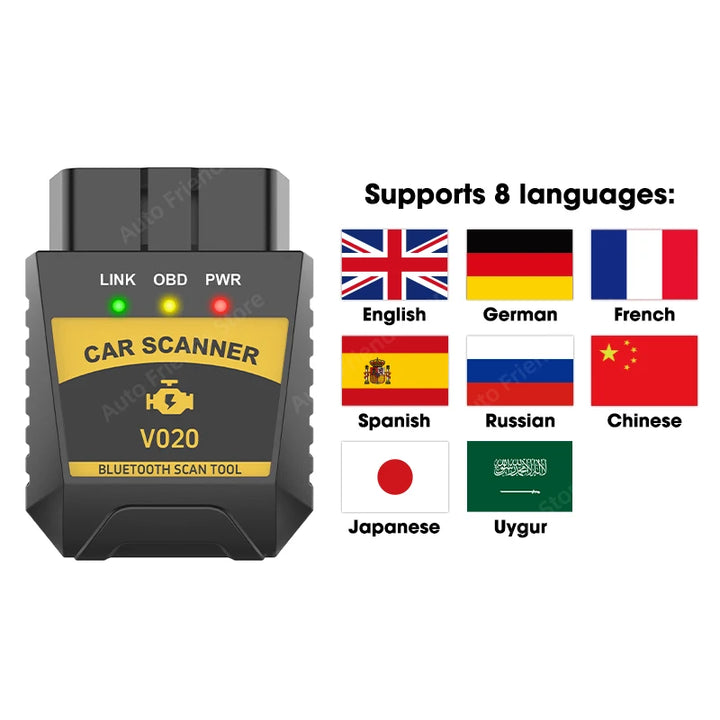

Support Language: English/German/French/Spanish/Russian/Chinese/Japanese/Uygur
Software Platform:
1. Compatible Software
Window Versions: ScanMaster-ELM, ScanTool.net, PCMSCAN, etc;
Android Version: Torque, DashCommand, OBD Car Doctor, Auto Doctor, Mini
OBDII, EOBD, etc.
2. Compatible Platform
Software Support Platform
: Windows XP, Windows 7/8/10
Packing List:
1 x OBD2 Car Scanner
1 x User Manual
| Color |
V020 |
|---|
