Communication method: Bluetooth 5.1

Software Platform: Support Android / Windows

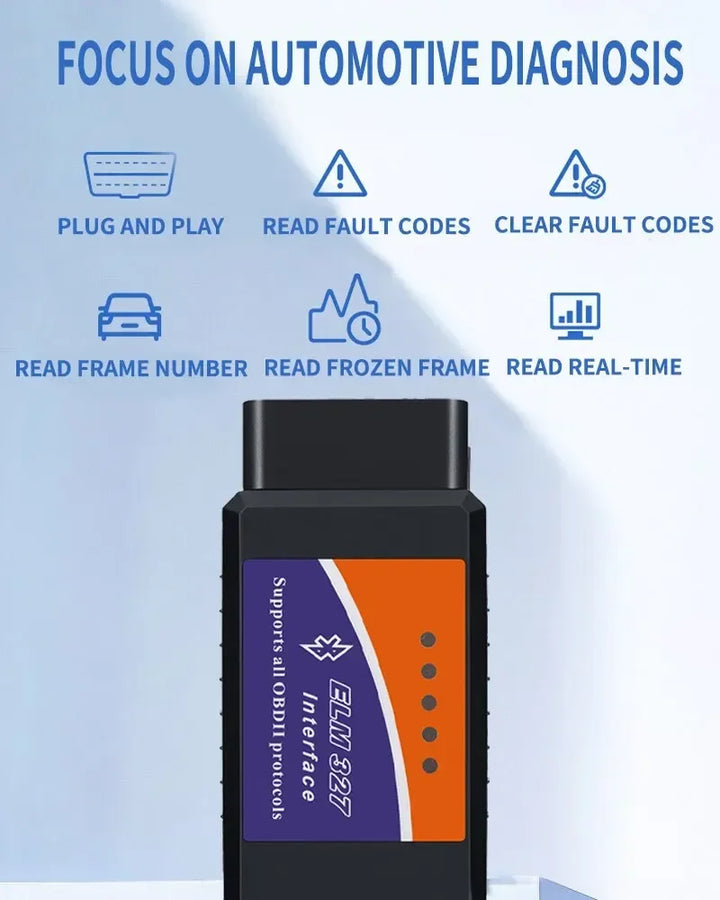

Features:

1. Small size, highest chip integration

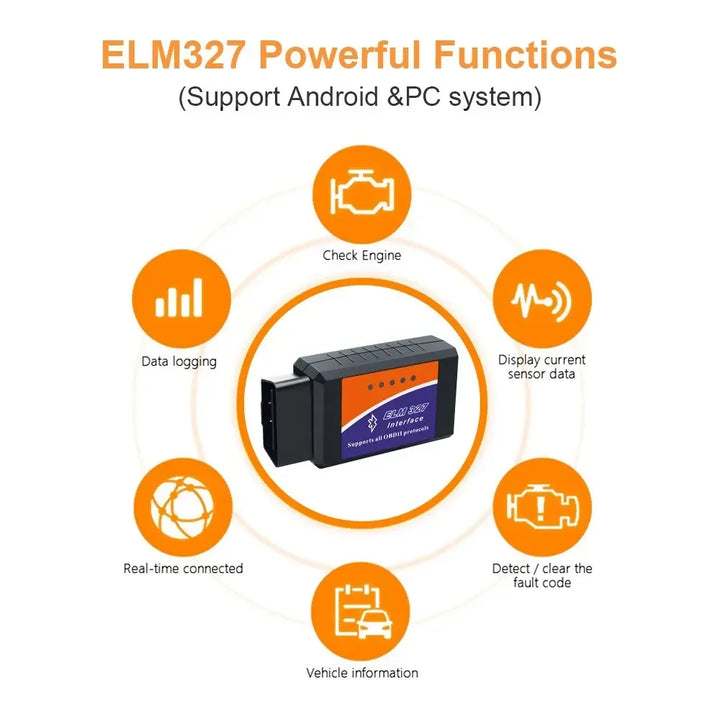

2. The software can perform the following operations:

Reads diagnostic error codes - generic and manufacturer specific, and displays their meaning (database has over 3000 generic code definitions)

Clear error codes and turn off the MIL ("Check Engine" Light) to display current sensor data, including:

Engine Revolutions Per Minute (RPM) Calculated Load Value Coolant Temperature Fuel System Status Vehicle Speed Short Term Fuel ConditionsIntake Manifold Pressure Injection Advance Timing for Long Term Fuel ConditionsIntake temperature Air velocityAbsolute Throttle Position Vs Short Term Fuel Status Oxygen Detection Voltage Fuel System Status Fuel PressureFuel consumption monitoring and many other data...

Future features of the software:Data graphs display and record log freeze frame data continuous and discontinuous oxygen detection results

Protocol support:Protocols supported by OBDII:

1. SAE J1850 PWM (41.6Kbaud)

2. SAE J1850 VPW (10.4Kbaud)

3. ISO9141-2(5 baud init, 10.4Kbaud)

4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)

5. ISO14230-4 KWP (fast init, 10.4 Kbaud)

6. ISO15765-4 CAN (11bit ID, 500 Kbaud)

7. ISO15765-4 CAN (29bit ID, 500 Kbaud)

8. ISO15765-4 CAN (11bit ID, 250 Kbaud)

9. ISO15765-4 CAN (29bit ID, 250 Kbaud)

Software platform:

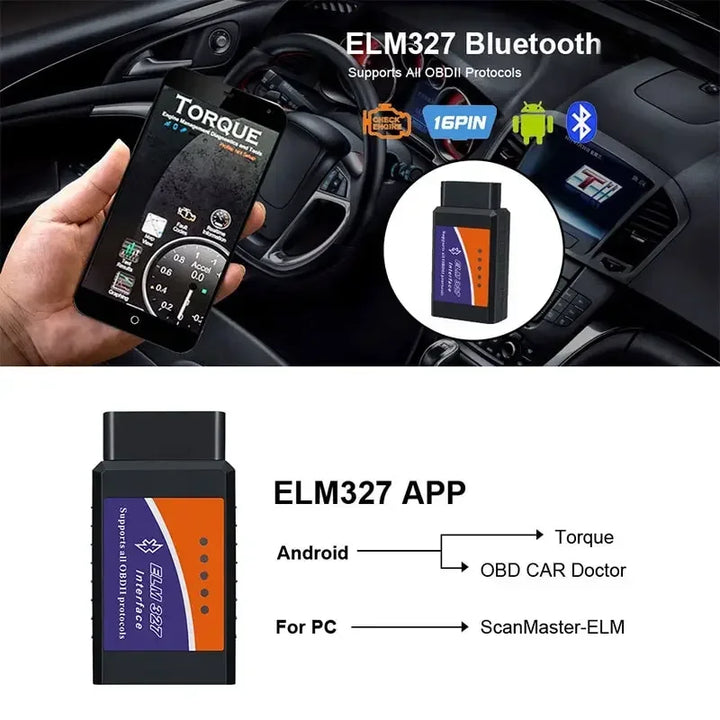

1. Compatible softwareWindow version: ScanMaster-ELM, ScanTool.net, PCMSCAN, etc.;Android version: Torque, DashCommand, OBD Car Doctor, Auto Doctor, Mini OBDII, EOBD, etc.; Symbian version: OBDScope.

2. Compatible platformsSoftware support platform: Windows XP, Windows 7/8, Android, IOS, Symbian and other systems.

Use Instructions

1. Install OBDII(OBD port in the car)

2. Install Android Software Torque

a) Copy software to phone from CD

b) Install Software

3. Connection OBDII

a) Search OBDII Bluetooth

b) Enter the password “1234”

c) Connection Success

4. Run Software

Click Menu button setting Bluetooth connection

a) Choose Commotion type is Bluetooth

b) Choose Bluetooth Device is OBDII

Exit Torque, and re-run the software. Successful connection

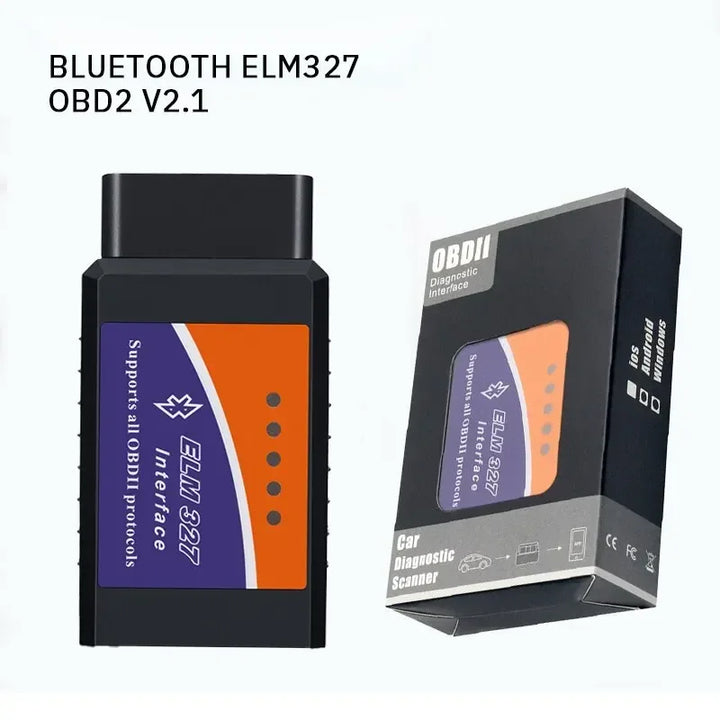

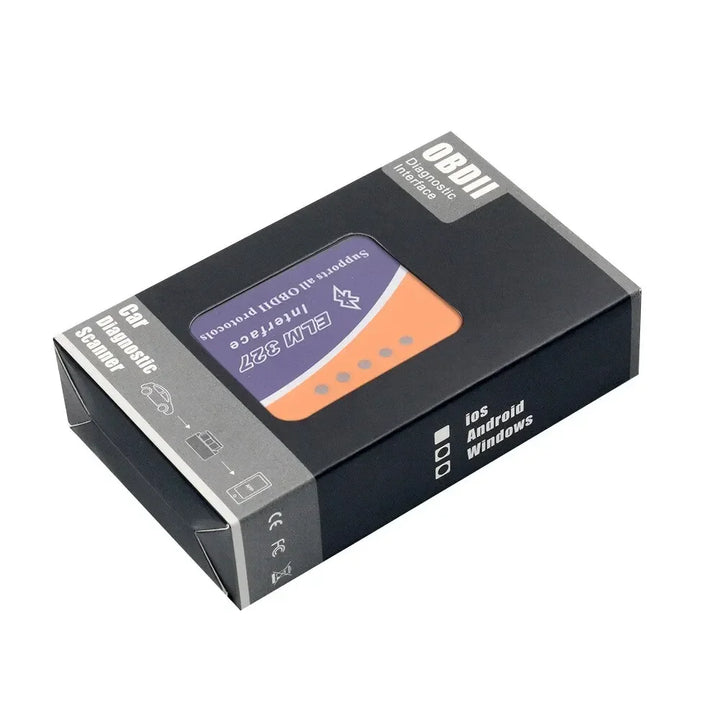

Package contains:

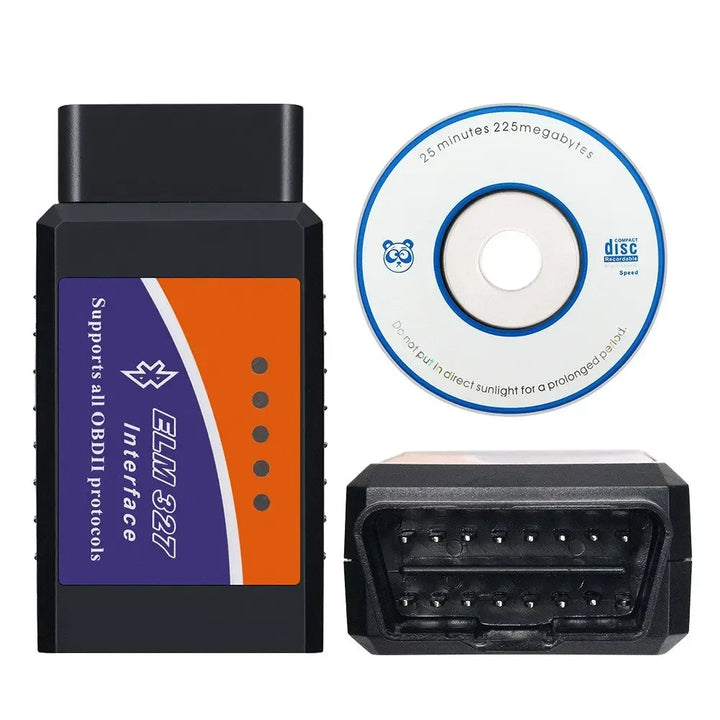

1×diagnostic instrument, 1×CD
